Tantalum Capacitors
The characteristic of tantalum capacitor is its small size, long life, and has stable electrical characteristics over a wide temperature range (-55 ° C to + 125 ° C, depending on the type, + 150 ° C). In response to the need for high-density surface mounting accompanying miniaturization and high functionality of electronic equipment, we developed varieties mainly for chip type. We are enriching product groups such as small size, thin shape, high function, high performance, circuit protection and so on.

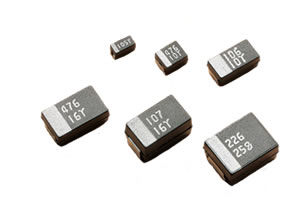

Chip Tantalum Capacitors
| Type | Features | Case code | Rated Voltage | Capacitance tolerance |
|---|---|---|---|---|
|
251M Series Face-down Terminal  |
Ultra miniature and high capacitance Capacitors with Face-down Terminal Structure. Contribute to miniaturization of the portable multimedia devices. | 1005～3216 | 2.0～35VDC | 0.47µF～330µF |
|
267M Series Standard  |
Standard Series of Type 267 with convetional structure which have high reliability. Suitable for wide range of application. | 3216～7343H | 4.0～50VDC | 0.047µF～220µF |
|
267 E Series Extended  |
Extended capacitance series of Type 267 M series. Suitable for wide range of application. |
3216～7343H | 2.5～50VDC | 0.22µF～680µF |
|
267 N Series AEC-Q200 Compliant  |
High reliability series of Type 267 for Automotive. Suitable for Automotive Electronics, such as ECU, ABS, Air Bags, and etc. |
3216～7343 | 4.0～35VDC | 0.1µF～220µF |
|
267 P Series JAXA Certified（CWS11)  |
High reliability series of Type 267 for Space Systems Equipment. Only one Tantalum Capacitors certified by JAXA. |
3216～7343H | 4～50VDC | 0.1µF～100µF |
|
271N Series 150℃  |
150℃ High Temperature Capacitors based on Type 267. Suitables for ECU in the engine room of Automobile. |
3216～7343 | 4～35VDC | 0.1～68µF |
|
281M Series Ultra Low ESR  |
Ultra Low ESR series based on Type 267. Suitable for medium to high frequency circuit as DC/DC Convertor. |
7343～7343H | 4.0～50VDC | 4.7～220µF |
|
281E Series Ultra Low ESR |
Extended capacitance series of Type 281 M series. Suitable for medium to high frequency circuit as DC/DC Convertor. |
7343～7343H | 4.0～25VDC | 22～470µF |
|
279M Series Built in Fuse  |
Built-in Fuse Capacitors based on Type 267. Suitable for Low Impedance Circuit. (Complete Lead-free） |
3528～7343H | 6.3～50VDC | 0.15µF～330µF |
|
TCA Conductive Polymer  |
Ultra low ESR Capacitors which using Conductive Polymer. Excellent noise absorption performance on high-frequency circuits. |
3216～7343 | 2.5～10VDC | 22～680µF |
|
TCB Conductive Polymer  |
Ultra low ESR Capacitors which using Conductive Polymer with Face-down Terminal Structure. Excellent noise absorption performance on high-frequency circuits. |
1005～3216 | 2.5～10VDC | 4.7µF～220µF |
Leaded Tantalum Capacitors Production discontinued（Orders end at the end of November 2024）
| Type | Features | Case code | Rated Voltage | Capacitance |
|---|---|---|---|---|
111 |
Hermetically Sealed Capacitors in Metal Case, designed for Excellent Stability | A～D | 6.3～100VDC | 0.1µF～330µF |
112 |
Hermetically Sealed Capacitors in Metal case, designed for High Reliability | A～D,E,H | 6.3～50VDC | 1.5µF～1000µF |
204 |
Highly Reliable Epoxy Resin Coating Capacitors | 1～11 | 3.15～50VDC | 0.1µF～470µF |
Discontinued item
| Discontinued Products | Recommended Replacement | ||
|---|---|---|---|
| Type | Information | Final order period | Type |
| 111 | As for details, please ask our sales dept. | End of November 2024 | - |
| 112 | As for details, please ask our sales dept. | End of November 2024 | - |
| 204 | As for details, please ask our sales dept. | End of November 2024 | - |
| 278 | As for details, please ask our sales dept. | December, 2021 | 251 |
| 269 | As for details, please ask our sales dept. | March, 2023 | 279 |
| 251 T | As for details, please ask our sales dept. | December, 2022 | - |
| 247 | As for details, please ask our sales dept. | March, 2024 | - |
| 111P | As for details, please ask our sales dept. | March, 2024 | - |
