TCD
Conductive Polymer
Face-down Terminal
Complete lead-free

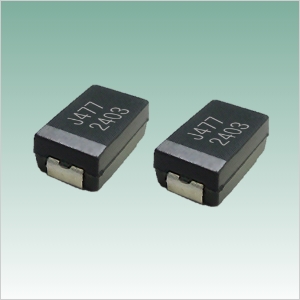

Type TCD is a tantalum solid electrolytic capacitor which uses conductive polymer as cathode layer. Their equivalent series resistance (ESR) is extremely lowered with the characteristics of the polymer having high electric conductivity. This ensures higher permissible ripple current and excellent noise absorption performance on high-frequency circuits.
Rating
| Type | TCD |
|---|---|
| Category Temperature Range | -55～+105℃ |
| Rated Temperature | +85℃ |
| Rated Voltage |
6.3～25VDC |
| Capacitance | 10～470µF |
| Capacitance tolerance | ±20%(M) |
| Failure Rated Level | 1%/1000h |
Features
- Low ESR and Low impedance : Using a conductive polymer as cathode layer makes low ESR and impedance possible. Type TCD makes high permissible ripple current and is suitable for noise bypass application.
- Stable ESR over temperature : ESR is extremely stable from low temperature through high temperature.
- Compact and Large capacitance : The capacitor is smaller and has larger capacitance than ceramic capacitor and aluminum electrolytic capacitor.
- Benign Failure Mode : Type TCD offers very safe characteristics which makes ignition and smoking harder by taking advantages of characteristics of conductive polymer if the capacitor be short-circuited.
- Lead Free and RoHS Compliant.
