Tantalum Capacitors

The characteristic of tantalum capacitor is its small size, long life, and has stable electrical characteristics over a wide temperature range (-55 ° C to + 125 ° C, depending on the type, + 150 ° C). In response to the need for high-density surface mounting accompanying miniaturization and high functionality of electronic equipment, we developed varieties mainly for chip type. We are enriching product groups such as small size, thin shape, high function, high performance, circuit protection and so on.

Tantalum Capacitors

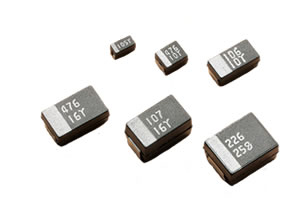

Chip Tantalum Capacitors

Type Features Case code Rated Voltage Capacitance tolerance
251M Series
Face-down Terminal
Ultra miniature and high capacitance Capacitors with Face-down Terminal Structure. Contribute to miniaturization of the portable multimedia devices. 1005~3216 2.0~35VDC 0.47µF~330µF
251T Series
Face-down Terminal
Low profile Capacitors based on Type 251. Contribute to, low profile of the portable multimedia devices. 1608~3216 4~25VDC 0.68~68µF
267M Series
Standard
Standard Series of Type 267 with convetional structure which have high reliability. Suitable for wide range of application. 3216~7257 4.0~50VDC 0.047µF~220µF
267 E Series
Extended
Extended capacitance series of Type 267 M series.
Suitable for wide range of application.
3216~7343H 2.5~50VDC 0.22µF~680µF
267 N Series
AEC-Q200 Compliant
High reliability series of Type 267 for Automotive.
Suitable for Automotive Electronics, such as ECU, ABS, Air Bags, and etc.
3216~7343 4.0~35VDC 0.1µF~220µF
267 P Series
JAXA Certified(CWS11)
High reliability series of Type 267 for Space Systems Equipment.
Only one Tantalum Capacitors certified by JAXA.
3216~7343 4~50VDC 0.1µF~100µF
278M Series
Miniature
Ultra miniature Capacitors bases on Type 267 which size is 1608.
Designed to meet the demands for further miniature of devices.
2012 2.5~35VDC 0.1µF~47µF
271N Series
150℃
150℃ High Temperature Capacitors based on Type 267.
Suitables for ECU in the engine room of Automobile.
3216~7343 4~35VDC 0.1~68µF
281M Series
Ultra Low ESR
Ultra Low ESR series based on Type 267.
Suitable for medium to high frequency circuit as DC/DC Convertor.
7343~7343H 4.0~50VDC 4.7~220µF
281E Series
Ultra Low ESR
Extended capacitance series of Type 281 M series.
Suitable for medium to high frequency circuit as DC/DC Convertor.
7343~7343H 4.0~25VDC 4.7µF~470µF
269M Series
Built in Fuse
Built-in Fuse Capacitors based on Type 267.
Suitable for low impedance circuit.
(Including lead-based alloys containing 85 % by weight or more lead)
3528~7257 6.3~50VDC 0.15~100µF
269E Series
Built in Fuse
Extended capacitance series of Type 269 M series.
Suitable for low impedance circuit.
(Including lead-based alloys containing 85 % by weight or more lead)
3528~7257 6.3~50VDC 0.47~150µF
279M Series
Built in Fuse
Built-in Fuse Capacitors based on Type 267.
Suitable for Low Impedance Circuit. (Complete Lead-free)
3528~7257 6.3~50VDC 0.15µF~330µF
TCA
Conductive Polymer
Ultra low ESR Capacitors which using Conductive Polymer.
Excellent noise absorption performance on high-frequency circuits.
2012~7343 2.5~10VDC 10µF~680µF
TCB
Conductive Polymer
Ultra low ESR Capacitors which using Conductive Polymer with Face-down Terminal Structure.
Excellent noise absorption performance on high-frequency circuits.
1005~3216 2.5~10VDC 4.7µF~220µF

Leaded Tantalum Capacitors

Type Features Case code Rated Voltage Capacitance
111
Hermetically Sealed Capacitors in Metal Case, designed for Excellent Stability A~D 6.3~100VDC 0.1µF~330µF
112
Hermetically Sealed Capacitors in Metal case, designed for High Reliability A~D,E,H 6.3~50VDC 1.5µF~1000µF
204
Highly Reliable Epoxy Resin Coating Capacitors 1~11 3.15~50VDC 0.1µF~470µF
247
Built-in Fuse Epoxy Molding Capacitors A 6.3~50VDC 1.0µF~47µF

Discontinued item

Discontinued Products Recommended Replacement
Type Information Production end time Type
277 As for details, please ask our sales dept. March, 2017 251 267E 278
