Circuit Protection Components

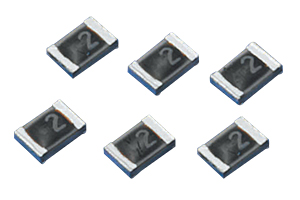

Circuit Protection Components are used to protect the circuit from overcurrent and overvoltage (static electricity) in the secondary circuits of electronic equipment. Our products are chip type protectors to meet the requirements for high density surface mounting technology, and more suitable for making compact equipment.

Circuit Protection Components

Current Fuses

Type Features Case code Rated Voltage Rated Current
JAE
High Pulse Resistance
High pulse resitance Fuses using wire material for fuse element.
(250% Fusing)
3216 24VDC 0.4~3.15A
JAG
High Pulse Resistance
High pulse resitance Fuses using wire material for fuse element.
(200% Fusing)
3216 32、72VDC 0.5~4.0A
JAG N Series
AEC-Q200 Compliant
High reliability series of Type JAG for Automotive Electric Control Unit. 3216 32、72
96VDC
0.63~4.0A
JAH
High Pulse Resistance
High curret Fuses based on Type JAE and JAG using wire material for fuse element. 3216 72VDC 1.0A~12.5A
JAH L Series
High Pulse Resistance
Low profile Fuses based on Type JAH using wire material for fuse element. 3216 32VDC 2.0A~15.0A
JHB
High Current
High current Fuses using All-in-one fuse element with terminal which suitable for Li-ion rechageable batterypacks.
(200% Fusing)
7358 35、60VDC 30A~100A
JHC
High Current
High current Fuses using All-in-one fuse element with terminal which suitable for Li-ion rechageable batterypacks.
(250% Fusing)
7358
1173
35、60
84VDC
30A~100A
JHC H Series
High Current
High Current Fuses using All-in-one fuse element with terminal which improved lifetime characteristics of Type JHC(250% Fusing). 7358 35、60VDC 30A~60A
KAB
Miniature
Standard thin film type Fuses which is miniature and low profile.
Suitable for the portable electronic equipment.
1608
2012
24、32
50VDC
0.2~6.3A (1608)
0.2~5.0A (2012)
KAB M Series
AEC-Q200 Compliant
High reliability series of Type KAB for Automotive Interiors. 1608
2012
24、32
50VDC
0.5~6.3A(1608)
0.5~8.0A(2012)
KAB N Series
AEC-Q200 Compliant
High reliability series of Type KAB for Automotive Electric Control Unit. 1608
2012
24、32
50VDC
0.5~2.0A(1608)
0.5~2.0A(2012)
KAB T Series
High Pulse Resistance
High pulse resitance series of Type KAB suitable for protection of Lithium ion battery. 1608 32VDC 1.6~6.3A
KAH
Ultra miniature
Miniature Fuses based on Type KAB which size is 1005.
Suitable for the portable electronic equipment.
1005 24VDC 0.1~2.5A

Surge Absorber

Type Features Case code Rated Voltage Trigger Voltage Clamp voltage
KVA
Standard
ESD protection devices for the circuits of various electronic devices. 1005
1608
24VDC 1000V max. (650V typ.) 200V max. (100V typ.)
KVA N Series
AEC-Q200 Compliant
High reliability series of Type KVA for Automotive. 1608 24VDC 1000V max. (650V typ.) 200V max. (100V typ.)

Discontinued item

Discontinued Products Recommended Replacement
Type Information Production end time Type
KAC As for details, please ask our sales dept. March, 2017 KAH
KAE As for details, please ask our sales dept. March, 2017 KAB
